Overview
Simplicity Connect Overview
Simplicity Connect, formerly EFR Connect, is Silicon Labs' mobile app for fast and easy Bluetooth? Low Energy, Wi-Fi, and Matter development.
You can quickly test and debug your BLE embedded application code, Over-the-Air (OTA) firmware update, data throughput, and interoperability with Android and iOS mobile devices.
Now, you can test Matter devices from the Simplicity Connect App. You can use Matter devices over Thread or Wi-Fi. The Matter demos that Simplicity Connect supports are Light, Door Lock, Window, Sensor, Thermostats, and Plug. Learn more about Simplicity Connect Demos.
Troubleshooting with Simplicity Connect is a breeze. The app indicates when your setup is ready to go. Its many features help you to fix bugs in no time and test data throughput and mobile interoperability with a tap of a button on the app. The out-of-the-box demos familiarize you with Simplicity Connect and the entire Silicon Labs development ecosystem. For an in-depth analysis, you can use our Network Analyzer to see the packet trace data.
Simplicity Connect works with all Silicon Labs Bluetooth, Wi-Fi and Matter development kits, SoCs, and modules.
Source code?- Get Simplicity Connect source code on GitHub for Android and iOS .
Simplicity Connect - Demo View
The Simplicity Connect BLE mobile app is divided into two main functional areas, the Demo view and Develop view. The Demo view provides you with demos for quickly testing sample apps on the Silicon Labs GSDK, which is available via Simplicity Studio.
Simplicity Connect includes the following demos:
- Blinky Demo:?The?”Hello?World” of BLE?–?Toggling?a LED is only one tap away.??
- Throughput Demo: Measure application data throughput between?the?BLE?hardware and your?mobile device?in?both directions?
- Health Thermometer Demo: Connect to a?BLE hardware?kit?and receive the temperature data from the on-board sensor.
- Connected Lighting DMP Demo: Leverage the?dynamic multi-protocol (DMP)?sample apps to control a DMP light node from a mobile?and?protocol-specific?switch node (Zigbee, proprietary) while keeping the light status in sync across all devices.
- Range Test Demo: Visualize the RSSI and other RF performance data on the app while running the Range Test on a pair of Silicon Labs radio boards.
- Motion: Control a 3D render of a Silicon Labs Thunderboard or Dev Kit that follows the phyiscal board movements.
- Environment: Read and display the data from the on-board sensors on a Silicon Labs Thunderboard or Dev Kit.
- Wi-Fi Commissioning: Commission a Wi-Fi device over BLE.
- Bluetooth Electronic Shelf Labels (ESL): Adds and commissions ESL tags to the system network by scanning the tag's QR code with the mobile device's camera and provides the user a UI to view the list commissioned tags and control them.
Simplicity Connect - Develop View
The Develop view contains several useful functionalities to help you create and troubleshoot embedded Bluetooth applications based on EFR32/BGM devices. Here is a rundown of the main functionalities:
- Bluetooth Browser: A generic and powerful tool for exploring the nearby BLE devices
- Bluetooth RSSI Graph: ?A graphical representation of RSSI for scanned devices
- Bluetooth Advertiser: Create multiple advertisement sets and enable them in parallel
- Bluetooth GATT Configurator: Create and manipulate multiple GATT databases;
- Bluetooth Interoperability Test: Verify interoperability between Silicon labs BLE hardware/software and your mobile device

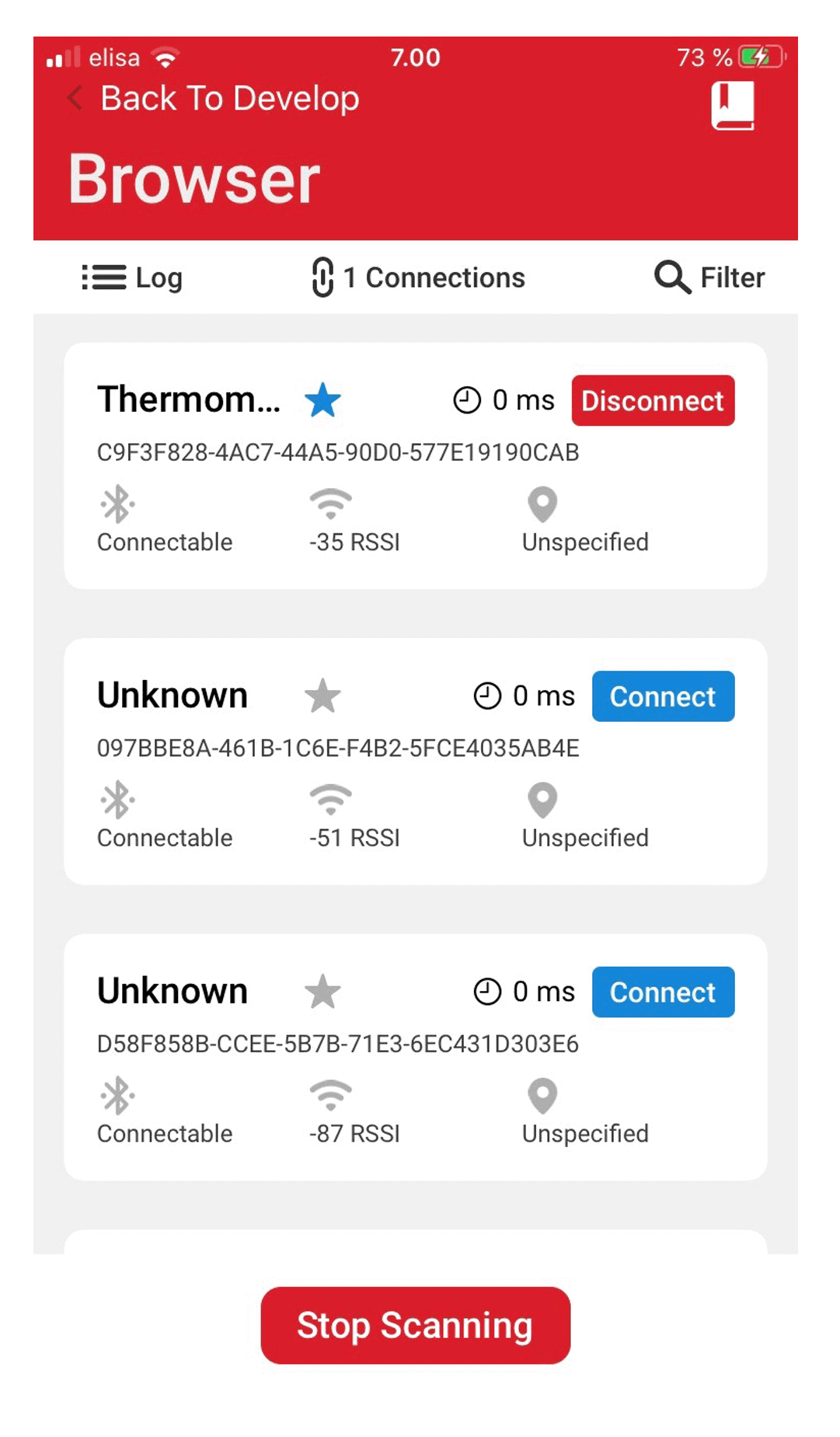

Bluetooth Browser Key Features
?Scan results with a rich data set
?Connectable/non-connectable
?Beacon type
?Advertisement interval
?RSSI
?Bluetooth address
?Ability to favorite devices on the scan list so that they surface to the top
?Advanced filtering options to quickly identify the devices you want
?Device name
?Raw advertisement data
?RSSI
?Beacon type (iBeacon, Eddystone, AltBeacon)
?Favorites only
?Connectable only
?Option to save filters for later use
?Support for multiple connections
?Ability to rename services/characteristics with 128-bit UUIDs (mappings dictionary)
?Over-the-air (OTA) device firmware upgrade (DFU) with reliable and speed modes
?Configurable MTU and connection interval
?Support for all GATT operations
Bluetooth Advertiser Key Features
?Supports legacy and extended advertising
?Configurable advertisement interval, TX Power, primary/secondary PHYs
?Start and stop advertisements manually, or stop based on time or event?
?Support for multiple AD types
?
Bluetooth GATT Configurator??
?Create and manipulate multiple local GATT databases on Simplicity Connect
?Add services, characteristics and descriptors
?Operate the local GATT via the browser when connected to a device
?Import and export a GATT database between Simplicity Connect and Simplicity Studio GATT Configurator?
?
Interoperability (IOP) Key Features
?Run a sequence of BLE operations to verify interoperability: Scan, Connect, GATT discovery, GATT operations, Security, Throughput, OTA?
?Export results log
-
